Sprinter 170" Standard Roof Rack with Side Ladder

Sprinter 144" Roof Rack with Baja Design Light bar

Sprinter 144" with Baja Designs 50" Lightbar

Sprinter 170" Standard Roof Rack w/Light Bar Fairing

Sprinter 170" The Standard Roof Rack - Top Down View

Sprinter 170" Standard Roof Rack w/light bar fairing cutout

Detail view of drop-in hardware slots on FVC crossbars

Sprinter Standard Roof Rack Key Features Video

$2,295.00

Choose Your Rack

Sprinter 170" Standard Roof Rack

Sprinter 170" Standard Roof Rack w/Light Bar Compatible Fairing

[{"id":45219008348390,"title":"Sprinter 170\" Standard Roof Rack","option1":"Sprinter 170\" Standard Roof Rack","option2":null,"option3":null,"sku":"SP0115B","requires_shipping":true,"taxable":true,"featured_image":{"id":36395646419174,"product_id":7506512576742,"position":1,"created_at":"2021-12-18T13:26:55-07:00","updated_at":"2023-06-01T15:31:32-07:00","alt":"Sprinter 170 Roof Rack - The Standard","width":1000,"height":747,"src":"\/\/flatlinevanco.com\/cdn\/shop\/products\/sprinter-170-roof-rack-standard.jpg?v=1685658692","variant_ids":[45219008348390]},"available":true,"name":"Sprinter Van Standard Roof Rack | 170\" Wheelbase - Sprinter 170\" Standard Roof Rack","public_title":"Sprinter 170\" Standard Roof Rack","options":["Sprinter 170\" Standard Roof Rack"],"price":229500,"weight":40823,"compare_at_price":null,"inventory_management":"shopify","barcode":"735632663360","featured_media":{"alt":"Sprinter 170 Roof Rack - The Standard","id":28946560975078,"position":1,"preview_image":{"aspect_ratio":1.339,"height":747,"width":1000,"src":"\/\/flatlinevanco.com\/cdn\/shop\/products\/sprinter-170-roof-rack-standard.jpg?v=1685658692"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":45219008381158,"title":"Sprinter 170\" Standard Roof Rack w\/Light Bar Compatible Fairing","option1":"Sprinter 170\" Standard Roof Rack w\/Light Bar Compatible Fairing","option2":null,"option3":null,"sku":"SP0127B","requires_shipping":true,"taxable":true,"featured_image":{"id":41789005594854,"product_id":7506512576742,"position":8,"created_at":"2024-07-26T09:49:11-07:00","updated_at":"2024-12-17T14:58:27-07:00","alt":"Sprinter 170\" Standard Roof Rack w\/Light Bar Fairing","width":1000,"height":747,"src":"\/\/flatlinevanco.com\/cdn\/shop\/files\/170-standard-rack-light-bar-fairing-with-onx6-arc_480d2489-90a9-4e89-a060-4f4ce5227b96.jpg?v=1734472707","variant_ids":[45219008381158]},"available":true,"name":"Sprinter Van Standard Roof Rack | 170\" Wheelbase - Sprinter 170\" Standard Roof Rack w\/Light Bar Compatible Fairing","public_title":"Sprinter 170\" Standard Roof Rack w\/Light Bar Compatible Fairing","options":["Sprinter 170\" Standard Roof Rack w\/Light Bar Compatible Fairing"],"price":229500,"weight":40823,"compare_at_price":null,"inventory_management":"shopify","barcode":"702735891754","featured_media":{"alt":"Sprinter 170\" Standard Roof Rack w\/Light Bar Fairing","id":34412109365478,"position":8,"preview_image":{"aspect_ratio":1.339,"height":747,"width":1000,"src":"\/\/flatlinevanco.com\/cdn\/shop\/files\/170-standard-rack-light-bar-fairing-with-onx6-arc_480d2489-90a9-4e89-a060-4f4ce5227b96.jpg?v=1734472707"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

SKU: SP0115B

In stock - Fast and Free Shipping
Inventory on the way

The Standard 170" Sprinter Roof Rack gives you the adjustability of our Low Profile Roof Rack with a more aggressive look, wider footprint, and bolt-on awning compatibility.

The Sprinter 170" Standard Rack is easy to install, and it comes with 9x anodized aluminum crossbars for maximum versatility. Easily mount solar panels, MaxTrax, or even decking to the 10-series aluminum extrusion crossbars. The built-in Aluminum wind fairing deflects the wind and keeps your van fuel efficient even when you have all your gear loaded up on the rack itself.

This 170" Mercedes Sprinter Van roof rack is compatible with the Fiamma F45 Awning, and other wall mount awnings. The side rails have strategically placed L-track compatible mounting points, making it easy to strap down items like surfboards and kayaks on your roof rack. At 6.5" tall, the side rails are taller than the Low Pro, which allows you to recess your solar panels and other rooftop gear. The Standard also features a wider footprint that offers more usable area compared to the Low Pro Roof Rack line. The Standard Rack is also compatible with many Roof Top Tents (RTT's) - just make sure to double-check the dimensions before purchasing.

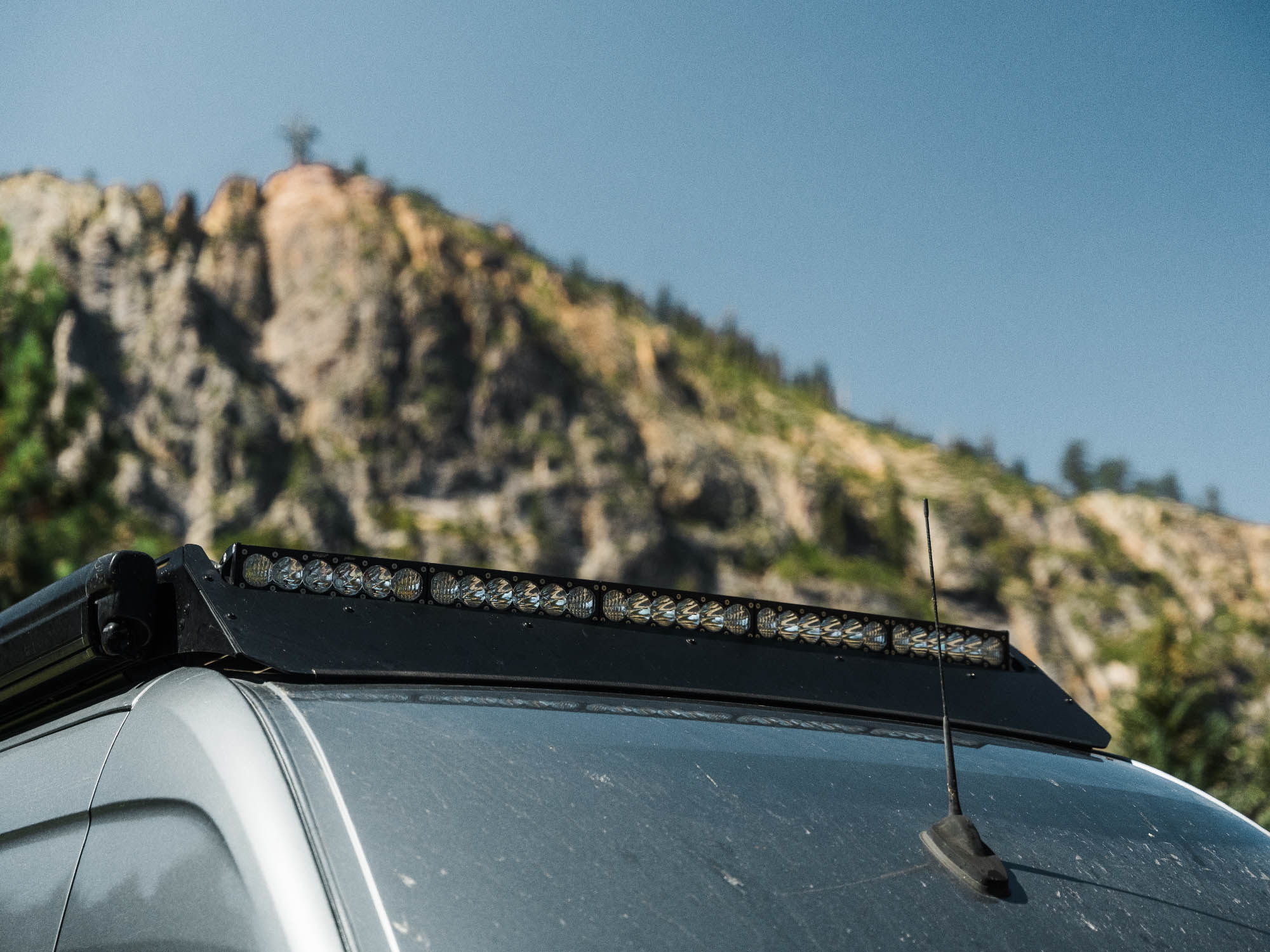

Sprinter 170" Standard Roof Rack w/Light Bar Compatible Fairing Option

Select this option if you are planning to run a light bar. It features a notched-out version of our front fairing that's designed to accept most 50" LED light bars.

We recommend the Baja Designs ONX6 50" Arc LED Light Bar (shown in product rendering above)
Please note that this option does not include a light bar.

DETAILS

Lightweight all-aluminum side rails and crossbars - the total rack weight is only 95 pounds
Lightweight Aluminum front wind fairing
L-track compatible mounting points
Stainless steel pucks for the stock or aftermarket track
Stainless steel hardware
10 series anodized aluminum crossbars - Qty 9
Extra crossbars are available here
Compatible with the Fiamma F45S 350 Awning & the Fiamma F45S 400 Awning
View the Installation Guide »

COMPATIBILITY

2007+ Mercedes Benz Sprinter 170" Vans

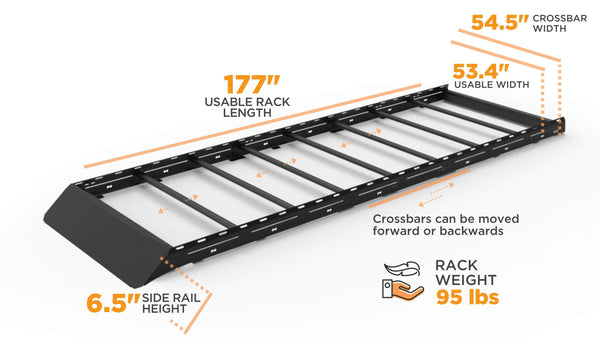

Key Feature Dimensions & Specs

Sprinter Van Standard Roof Rack | 170" Wheelbase

Aerodynamic Design

The built-in fairing deflects the wind and keeps your 170 Sprinter fuel efficient.

Fiamma F45S Awning Compatibility

The Fiamma F45S Awning bolts directly to the Standard Roof Rack.

Wider Footprint & RTT Compatible

The Standard Rack has a wider footprint than our Low Pro Series, giving you more options for solar panels and roof top tents (RTT's).

9x Crossbars

All 9 crossbars are completely adjustable. Move them wherever you like to accommodate fans, AC units, solar panels, and other rooftop accessories.

Easy DIY-Installation

The Standard Rack is designed to bolt directly to the stock or aftermarket roof rails. Most installs take less than a few hours.

Built To Last

Adjustable, rugged and lightweight, the Standard Rack is designed to last the life of your van.

Relax In The Shade

The Sprinter Standard Rack is designed to mount the Fiamma F45S 400 Awning directly onto the side rails for easy installation. This roof rack and awning together ensures full coverage between the roof rack and awning, with no gap that weather can get through in-between.

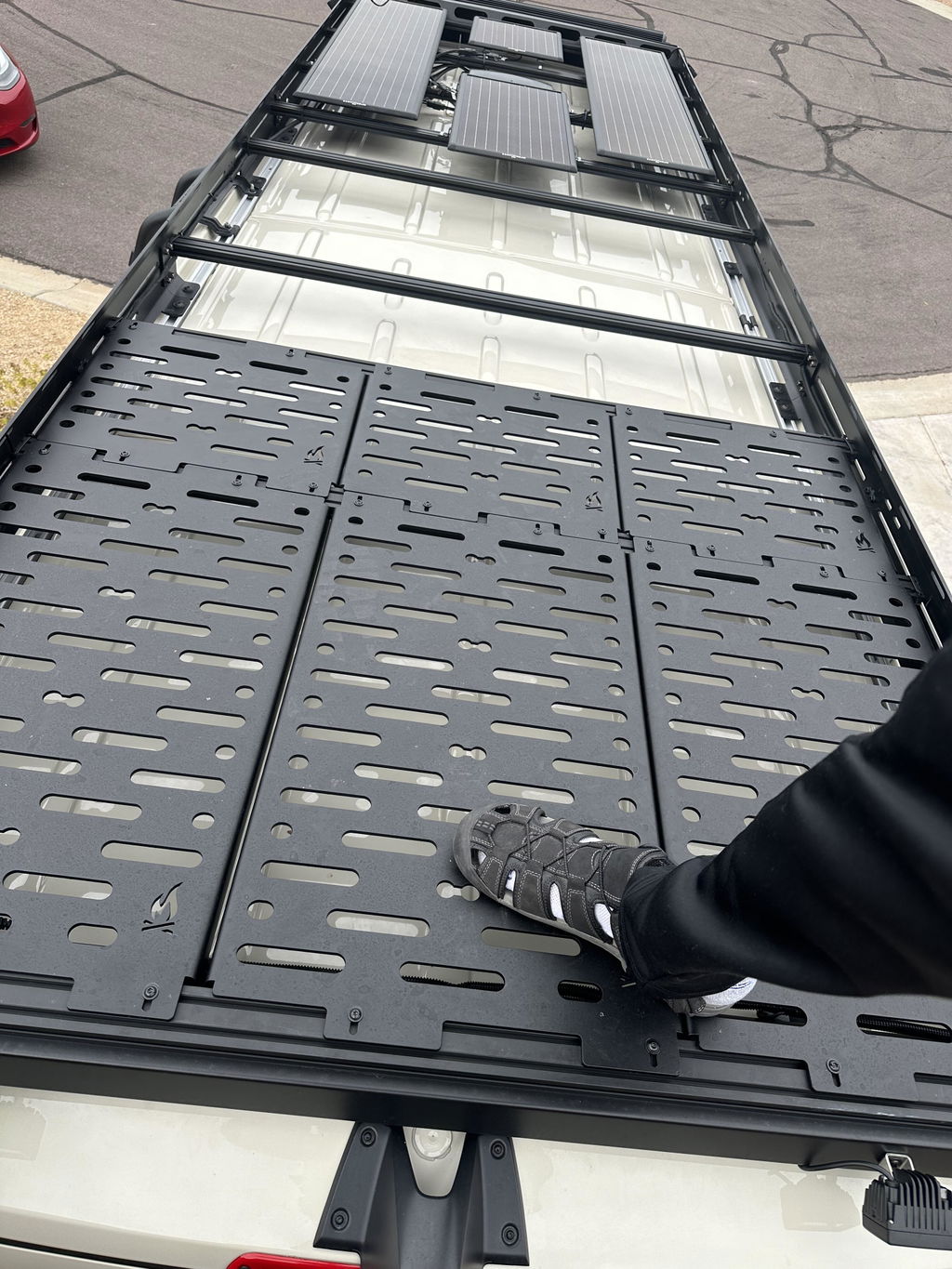

Ready For Decking

Get more storage, more usable space, and more functionality from your van by adding our Universal Decking Panels. They’re lightweight and durable, easy to install, available in four sizes, and to take the guesswork of adding a deck to your roof rack. Whether you’re looking for a full deck, a safe walkway for accessing your rooftop tent, or a standing platform on the roof, our decking panels are an easy add to our Standard Roof Rack.

Fast & Free Shipping

Our products are stocked and ready to ship out the next business day. The Standard Rack comes flat packed in a box, and orders shipping to locations within the lower 48 states are delivered directly to your door for free.

WARNING: This product can expose you to chemicals including lead and lead compounds, DEHP and bisphenol A (BPA) which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.

Love the SRR!

The standard roof rack for my 170 went up really well, and is awesome option for roof racks on sprinter vans. I also purchased the decking panels and this along with my solar panels mated perfectly to the roof rack. Great job FVC. Would like to see a slimer panel option for wider aftermarket AC ie Nomadix X3. Then it would be flawless!

hjas not been install yet

170 standard roof rack

The rack goes together easily, it doesn’t have instructions in the box. I’m sure you can find them on the website. She goes together veery easily and looks great.

Follow-up to “Versatile Roof Rack….” Review

My DIY 80/20 x-bar installation went crazy and needed some additional parts, Silas and FVCo came through with the goods. Having totally researched all the racks out there ahead of time, the FVCo product fit my needs the best. But what the product pictures and quality construction don’t show is the level of support and service that you get from the FVCo team during and after purchase. Thanks to Silas and the entire team for the patience and support provided throughout the process. Thanks once again. Bill W. Whidbey Island, WA

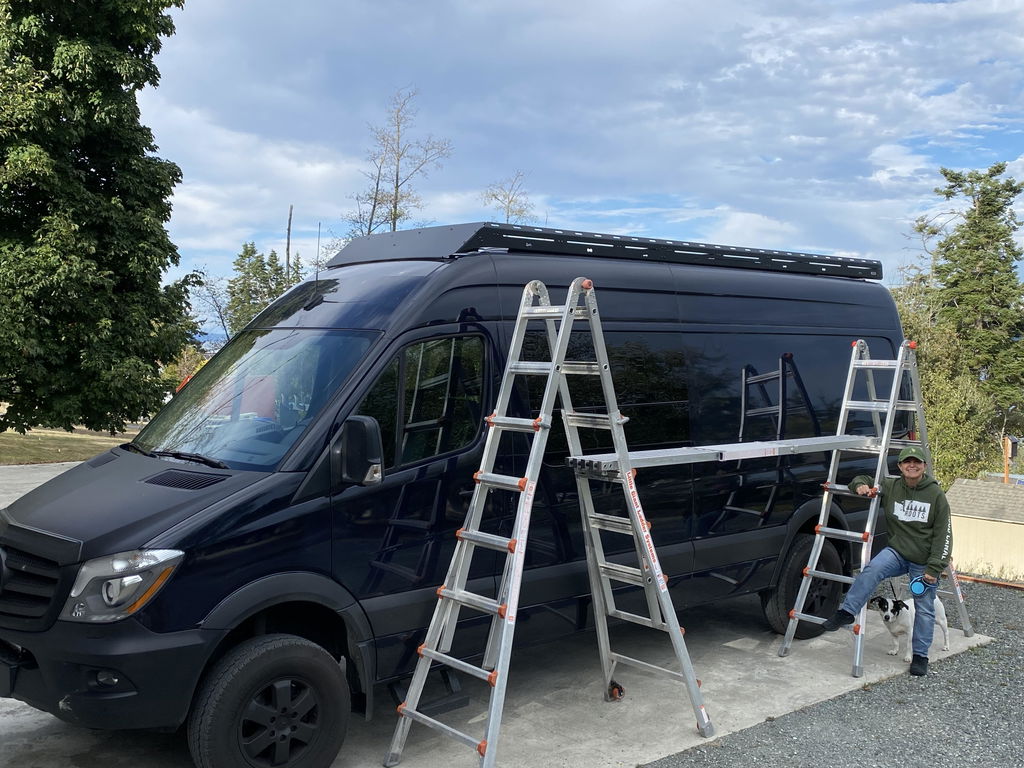

Versatile Roof Rack with Quick Install

This is a high quality rack that allows you to create your own space as you need it. The inclusion of 80/20 materials provides infinite possibilities for the DIYer. The rack can and was installed in four hours by one person. Use of the packing materials to protect your roof is a “pro tip”. Thanks FVCo for such a great and affordable roof rack option. Bill W. on Whidbey Island, WA

Another fantastic FVC product

The standard roof rack is the second FVC add on to our sprinter 170, and it again exceeds our expectations. Easy to install, great online support and reasonable shipping, even to Canada. They have also been readily available by phone for product discussions and last minute confirmations on how to install. Great people, great company. Can't wait to make our next order!
