Solar Panel Mounting Brackets

$49.00
/
Select Size

SKU: UN0108B

  • SKU: Standard (1.5") | UN0108B

    In Stock

  • SKU: Low Profile (.67") | UN0118B

    In Stock

Our Solar Panel Mounting Brackets are designed to allow you to flush mount your solar panels to your FVC roof rack, making the installation clean and simple. They are designed to be used with our Low Pro or Standard series Sprinter, Transit, & ProMaster roof racks; or any other roof rack that features 8020 style extrusion crossbars.

Choose Your Option

Standard Height (1.5"): The Standard height option is designed for 1.5” solar panels, and may be used with thicker panels (thicker panels will be limited to bottom-mount or raised-mount orientation).

Low Profile Height (.67"): The Low Profile height option is designed for ZAMP Obsidian Series 0.67” thin solar panels.

How Can I Mount My Solar Panels With These Brackets?

Flush-Mount: This is the most common option and works for 1.5” or .67” panels. Install the brackets in the T-slots on the top of the crossbars to have the solar panels flush with the top of the crossbars.

Bottom-Mount: This allows you to use the crossbar for other purposes and have solar panels installed. Install the brackets in the T-slots on the bottom of the crossbars.

Raised-Mount: Flip the bracket over and install in the T-slots on the top of the crossbars for a raised solar panel height.

DETAILS

  • 4x solar panel mounting brackets
  • Includes stainless steel hardware
  • 8x bolts, washers, and slide-in t-nuts
  • 4x bolts and locknuts to mount to solar panel
  • View the Installation Guide »

COMPATIBILITY

  • The solar panel roof rack mounting kits are compatible with FVC crossbars and other 80/20 style extrusion crossbars.

WARNING: This product can expose you to chemicals including lead and lead compounds, DEHP and bisphenol A (BPA) which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.

Customer Reviews

Based on 17 reviews
82%
(14)
12%
(2)
0%
(0)
0%
(0)
6%
(1)
L
Louis W.
Solar panel mounting brackets

The solar panel mounting brackets showed up fast. Easy to install. Works great.

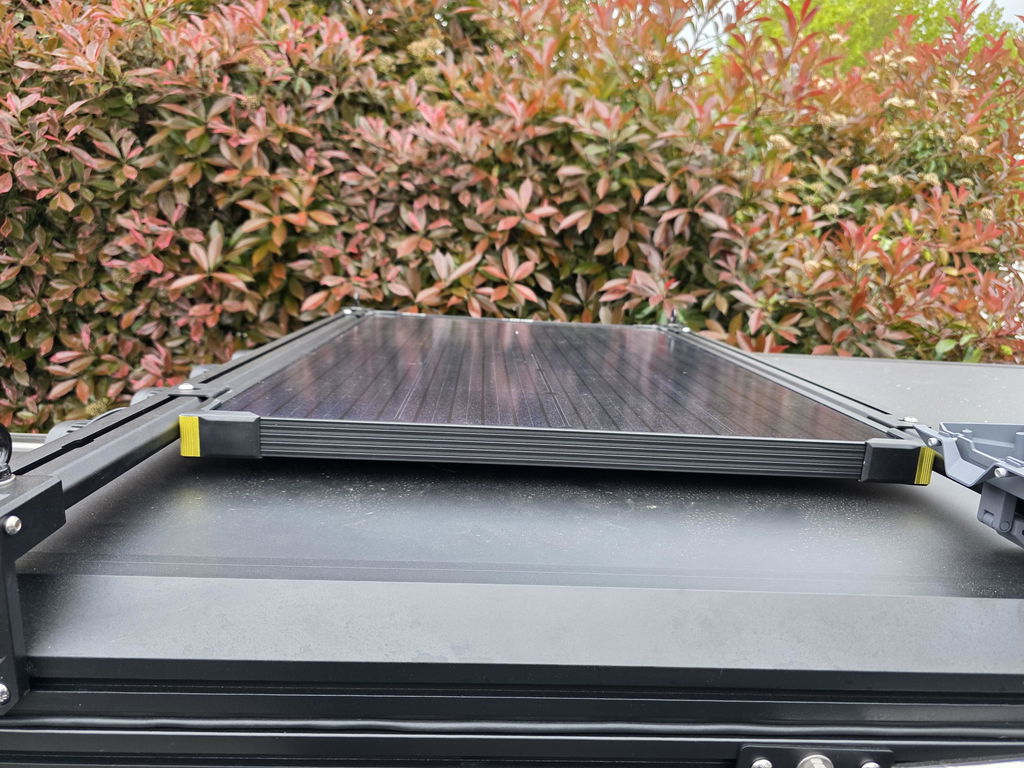

User picture
B
Bryce

Great product!

M
Michael G.
So Rad!!

I think i purchased several of Zamp and different options for the 100 watt obsidian panels these worked with some 158” malone aerobars from e-trailer to toyota sienna van 3rd Gen! So Radical! Very Robust. I replaced the hardware with stainless. Will purchase for future Zamp Obsidian Panels! Fo Sho.

J
Jeffrey H.
Solar panel mounts

These mounts and cross rails for the low pro rack are perfect. They work just right for my Renogy 200 watt panel!

A
Adolfo S.

Solar Panel Mounting Brackets

E
Edward R.
Installation Hacks

My FVC roof rack has a usable width of 57.3" whereas most 200W solar panels are an inch or so longer. No worries, just orient them different. Thought top-mount was too high and flush-mount wouldn't allow more support in the middle. Decided on bottom-mount so spare cross-beams would support panels in the middle since they were attached on ends. Good luck trying to align t-nuts for a blind attempt to insert bolts from the bottom. Solution: Set your phone on the van roof in selfie mode. You can now see when t-nuts are aligned and easily insert bolts. 600W on roof of Transit 148". Two Renogy 200W and two Rich Solar 100W thin panels on either side of Maxxair fan leaves room for vents. Specs match closely giving 597W output wired in series/parallel.
