Baja Designs LP4 pair with harness and wiring. Clear lens, driving/combo light pattern.
Baja Designs LP4 off road light with driving/combo light and amber lens
Baja Designs offroad LP4 pod light with spot light pattern and clear lens
Dimensions of Baja Designs LP4 offroad light

Baja Designs LP4 Pro LED Light Pod Pair


Light Pattern and Lens

SKU: 29-7803

  • In stock - Fast and Free Shipping
  • Inventory on the way

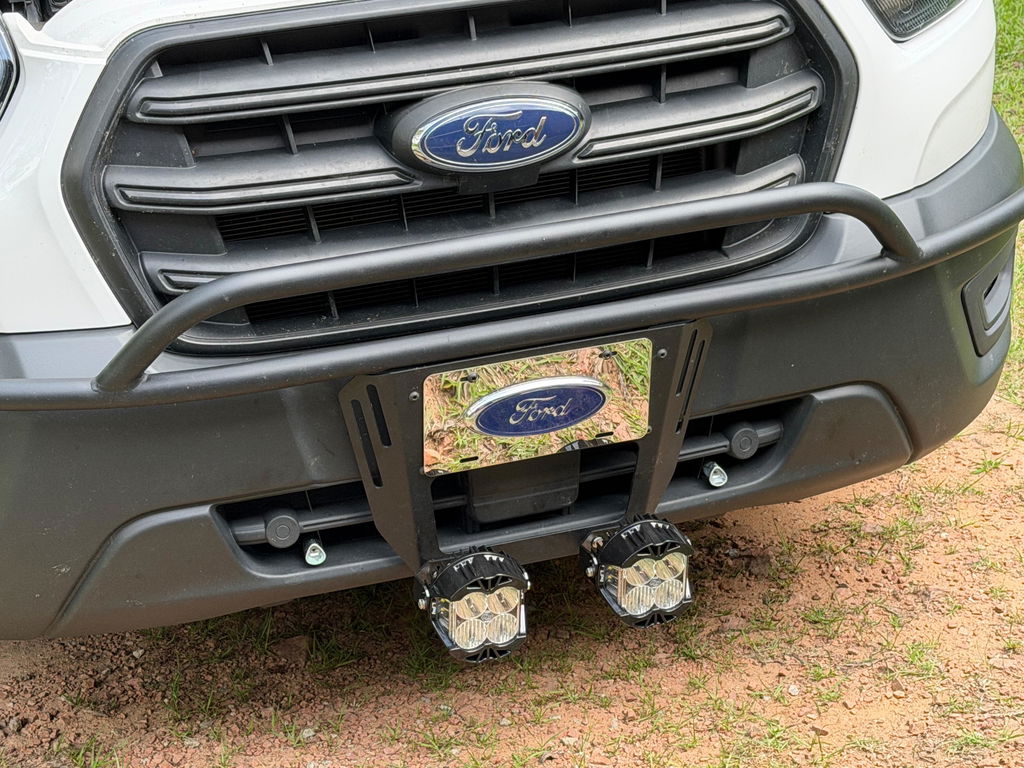

The LP4 may be the smallest variant in Baja Design’s LP lineup but it has all the power and features of its siblings. Get more out of your adventure days and upgrade your van with a pair of LP4’s, the perfect addition to our Nudge Bars and Safari Roof Racks.

The LP4 features a total of 8,750 lumens and a 200 degree spread of usable LED light. This light pumps out 7,050 forward projecting lumens and 1,700 lumens of dedicated peripheral lighting courtesy of our patented Integrated Peripheral Technology (IPT). To keep your light performing at its highest potential, the LP4 integrates our proprietary Direct Ducted Cooling (DDC) technology. This feature allows air to travel through the front of the housing, over the rear heat sinks - drastically improving cooling capacity and performance.

NOTE:  Please allow *1-2 weeks* for processing and handling times.


  • Includes 1 Pair of LP4 Light Pods
  • Includes 1 wiring harness
  • Choose your lens style
  • Amber backlight
  • 5.1” H x 5.1" W x 3.2"D
  • uService – Replaceable Lenses And Optics
  • ClearView – All The Light, Right Where You Need It
  • MoistureBlock – Waterproof, Rain Proof, Submersible
  • CopperDrive – Safely Driving LEDs at 100%
  • 5000K Daylight – Less Driver Fatigue, Natural Color
  • View the Installation Guide »

SKU:29-7803; 29-7813; 29-7801


Depth (in.) 3.2
Height (in.) 5.1
Length (in.) 5.1
Weight (lbs.) 2.8


Amperage Rating (A) 5.500
Average Rated Life (hr.) 49,930
Backlight Amperage Rating (A) 0.350
Backlight Wattage (W) 4.830
Beam Pattern Spot
Bezel Material Billet Machined Aluminum
Brightness (Lumens) 8857
Description Spot or Driving/Combo; Clear or Amber; Pair
Housing Color Black
Housing Material Hard Anodized Machined Aluminum
Lens Color Clear or Amber
Lens Material Hardcoated Polycarbonate
Light Quantity 2
Lighting Modes Beam/Day-Time Running Backlighting
Lighting Quantity 4
Lighting Technology LED
Lighting Type Forward Projecting
Mounting Hardware Included Yes
Mounting Hardware Material Stainless Steel
Overvoltage Protection Built-In
Product Type LP4 Pro LED Light Pod Pair w/ Wiring Harness
Secondary Amperage Rating (A) 1.000
Secondary Brightness (Lumens) 1972
Secondary Light Quantity 4 LEDs
Secondary Lighting Technology LED
Secondary Lighting Type Integrated Peripheral Technology (IPT)
Secondary Wattage (W) 15
Terminal Connector DT06-4S Deutsch
Terminal Type Mating Connector
Universal or Specific Universal
Wattage (W) 75.900
Wiring Harness Included Yes

Standards & Compliance

Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing)
Standards/Compliance (Impact Resistance) IK10 Compliant (Mechanical Impact Testing)
Standards/Compliance (Water Resistance) IP69K (Waterproof up to 9ft & Pressure Washable)
