Standard Roof Rack for Mercedes-Benz Sprinter 170

Sprinter 170" Standard Roof Rack with Side Ladder

Sprinter Standard Roof Rack Light Bar Fairing with light bar installed from Baja Designs

Sprinter 144" with Baja Designs 50" Lightbar

Sprinter Standard Roof Rack for 170" with light bar fairing, pictured with Baja Designs Arc light bar

Rear angled view of Sprinter Standard Roof Rack for 170

Sprinter Van Standard Roof Rack | 170" Wheelbase

Sprinter 170" Standard Roof Rack w/light bar fairing cutout

Detail view of drop-in hardware slots on FVC crossbars

Sprinter Standard Roof Rack Key Features Video

$2,395.00

Choose Your Rack

Sprinter 170" Standard Roof Rack

Sprinter 170" Standard Roof Rack w/Light Bar Compatible Fairing

SKU: SP0115B

[{"id":45219008348390,"title":"Sprinter 170\" Standard Roof Rack","option1":"Sprinter 170\" Standard Roof Rack","option2":null,"option3":null,"sku":"SP0115B","requires_shipping":true,"taxable":true,"featured_image":{"id":43635536363750,"product_id":7506512576742,"position":1,"created_at":"2025-03-11T15:46:06-07:00","updated_at":"2025-08-25T11:15:13-07:00","alt":"Standard Roof Rack for Mercedes-Benz Sprinter 170","width":1000,"height":747,"src":"\/\/flatlinevanco.com\/cdn\/shop\/files\/SP0115B-mb-sprinter-170-standard-roof-rack.jpg?v=1756145713","variant_ids":[45219008348390]},"available":true,"name":"Sprinter Van Standard Roof Rack | 170\" Wheelbase - Sprinter 170\" Standard Roof Rack","public_title":"Sprinter 170\" Standard Roof Rack","options":["Sprinter 170\" Standard Roof Rack"],"price":239500,"weight":40823,"compare_at_price":null,"inventory_management":null,"barcode":"810202821484","featured_media":{"alt":"Standard Roof Rack for Mercedes-Benz Sprinter 170","id":35613539369190,"position":1,"preview_image":{"aspect_ratio":1.339,"height":747,"width":1000,"src":"\/\/flatlinevanco.com\/cdn\/shop\/files\/SP0115B-mb-sprinter-170-standard-roof-rack.jpg?v=1756145713"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":45219008381158,"title":"Sprinter 170\" Standard Roof Rack w\/Light Bar Compatible Fairing","option1":"Sprinter 170\" Standard Roof Rack w\/Light Bar Compatible Fairing","option2":null,"option3":null,"sku":"SP0127B","requires_shipping":true,"taxable":true,"featured_image":{"id":43635536167142,"product_id":7506512576742,"position":8,"created_at":"2025-03-11T15:46:06-07:00","updated_at":"2025-10-09T13:06:03-07:00","alt":"Sprinter Standard Roof Rack for 170\" with light bar fairing, pictured with Baja Designs Arc light bar","width":1000,"height":747,"src":"\/\/flatlinevanco.com\/cdn\/shop\/files\/SP0115B-170-standard-rack-light-bar-fairing-with-onx6-arc-light-bar.jpg?v=1760040363","variant_ids":[45219008381158]},"available":true,"name":"Sprinter Van Standard Roof Rack | 170\" Wheelbase - Sprinter 170\" Standard Roof Rack w\/Light Bar Compatible Fairing","public_title":"Sprinter 170\" Standard Roof Rack w\/Light Bar Compatible Fairing","options":["Sprinter 170\" Standard Roof Rack w\/Light Bar Compatible Fairing"],"price":239500,"weight":40823,"compare_at_price":null,"inventory_management":null,"barcode":"810202820753","featured_media":{"alt":"Sprinter Standard Roof Rack for 170\" with light bar fairing, pictured with Baja Designs Arc light bar","id":35613539336422,"position":8,"preview_image":{"aspect_ratio":1.339,"height":747,"width":1000,"src":"\/\/flatlinevanco.com\/cdn\/shop\/files\/SP0115B-170-standard-rack-light-bar-fairing-with-onx6-arc-light-bar.jpg?v=1760040363"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

The Standard 170" Sprinter Roof Rack gives you the adjustability of our Low Profile Roof Rack with a more aggressive look, wider footprint, and bolt-on awning compatibility.

The Sprinter 170" Standard Rack is easy to install, and it comes with 9x anodized aluminum crossbars for maximum versatility. Easily mount solar panels, MaxTrax, or even decking to the 10-series aluminum extrusion crossbars. The built-in Aluminum wind fairing deflects the wind and keeps your van fuel efficient even when you have all your gear loaded up on the rack itself.

This 170" Mercedes Sprinter Van roof rack is compatible with the Fiamma F45 Awning, and other wall mount awnings. The side rails have strategically placed L-track compatible mounting points, making it easy to strap down items like surfboards and kayaks on your roof rack. At 6.5" tall, the side rails are taller than the Low Pro, which allows you to recess your solar panels and other rooftop gear. The Standard also features a wider footprint that offers more usable area compared to the Low Pro Roof Rack line. The Standard Rack is also compatible with many Roof Top Tents (RTT's) - just make sure to double-check the dimensions before purchasing.

Sprinter 170" Standard Roof Rack w/Light Bar Compatible Fairing Option

Select this option if you are planning to run a light bar. It features a notched-out version of our front fairing that's designed to accept most 50" LED light bars.

We recommend the Baja Designs ONX6 50" Arc LED Light Bar (shown in product rendering above)
Please note that this option does not include a light bar.

DETAILS

Lightweight all-aluminum side rails and crossbars - the total rack weight is only 95 pounds
Lightweight Aluminum front wind fairing
L-track compatible mounting points
Stainless steel pucks for the stock or aftermarket track
Stainless steel hardware
10 series anodized aluminum crossbars - Qty 9
Extra crossbars are available here
Compatible with the Fiamma F45S 350 Awning & the Fiamma F45S 400 Awning
View the 170" Installation Guide »
View the 170" w/Light Bar Fairing Installation Guide »

COMPATIBILITY

2007+ Mercedes Benz Sprinter 170" Vans

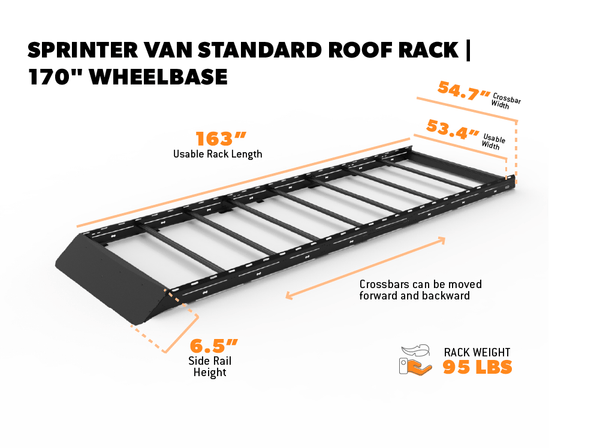

Key Feature Dimensions & Specs

Sprinter Van Standard Roof Rack | 170" Wheelbase

Aerodynamic Design

The built-in fairing deflects the wind and keeps your 170 Sprinter fuel efficient.

Fiamma F45S Awning Compatibility

The Fiamma F45S Awning bolts directly to the Standard Roof Rack.

Wider Footprint & RTT Compatible

The Standard Rack has a wider footprint than our Low Pro Series, giving you more options for solar panels and roof top tents (RTT's).

9x Crossbars

All 9 crossbars are completely adjustable. Move them wherever you like to accommodate fans, AC units, solar panels, and other rooftop accessories.

Easy DIY-Installation

The Standard Rack is designed to bolt directly to the stock or aftermarket roof rails. Most installs take less than a few hours.

Built To Last

Adjustable, rugged and lightweight, the Standard Rack is designed to last the life of your van.

Relax In The Shade

The Sprinter Standard Rack is designed to mount the Fiamma F45S 400 Awning directly onto the side rails for easy installation. This roof rack and awning together ensures full coverage between the roof rack and awning, with no gap that weather can get through in-between.

Ready For Decking

Get more storage, more usable space, and more functionality from your van by adding our Universal Decking Panels. They’re lightweight and durable, easy to install, available in four sizes, and to take the guesswork of adding a deck to your roof rack. Whether you’re looking for a full deck, a safe walkway for accessing your rooftop tent, or a standing platform on the roof, our decking panels are an easy add to our Standard Roof Rack.

Fast & Free Shipping

The Standard Rack comes flat packed in a box, and orders shipping to locations within the lower 48 states are delivered directly to your door for free.
