Baja Designs OnX6+ Straight LED Light Bar for camper vans

Baja Designs OnX6+ 40" Straight LED Light Bar

$1,441.95

SKU: 45-4003

  • In stock - Fast and Free Shipping
  • Inventory on the way

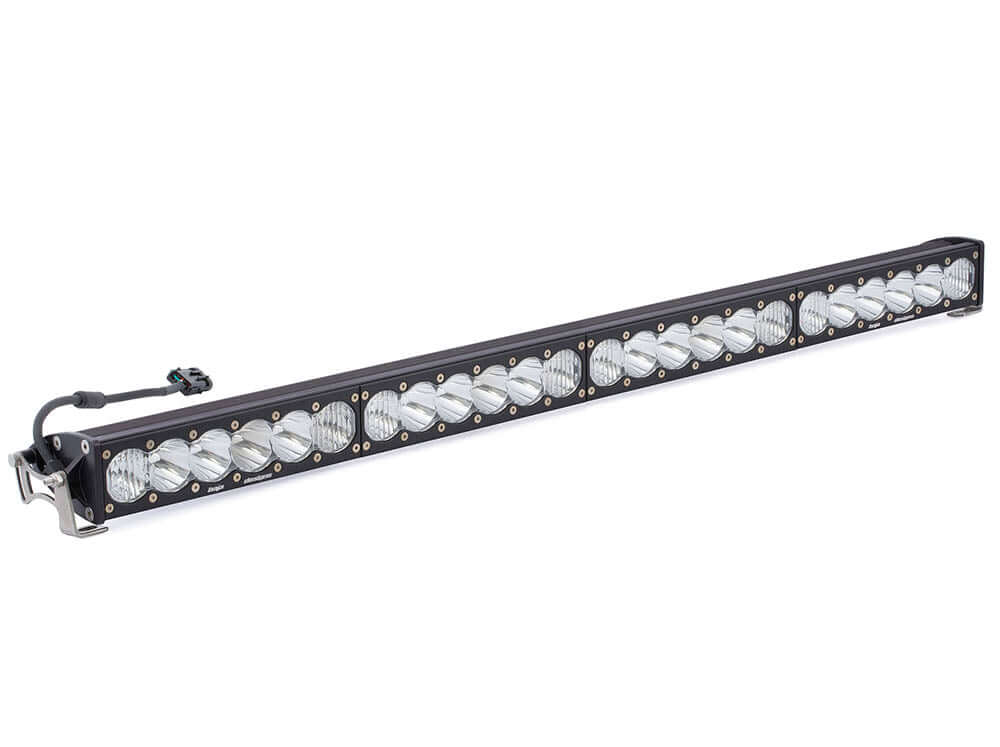

The Baja Designs OnX6 40" Straight LED Light Bar is the ideal choice for adding lighting to our Sprinter Low Roof and High Roof Low Pro Roof Racks.

The Onx6 combines an impressive 39,430 lumens with Baja Designs’ High Speed Spot reflector, making a very powerful lighting option that gives you the furthest light project possible from an LED light bar. With industry standard sizing, this light bar can easily be integrated with aftermarket mounting systems. At 40” wide, this is the perfect size for installing in-between the side rails of our Sprinter Low Pro Roof Racks.

NOTE: Orders placed now are expected to ship near late February.

DETAILS

  • 40 inch Light Bar
  • Clear Lens
  • Driving/Combo Light Pattern
  • uService – Replaceable Lenses And Optics
  • ClearView – All The Light, Right Where You Need It
  • MoistureBlock – Waterproof, Rain Proof, Submersible
  • CopperDrive – Only LED Driven At 100 Percent
  • 5000K Daylight – Less Driver Fatigue, Natural Color

NOTE: This light does not include a wiring harness. The applicable wiring harness for this light is Baja Designs Onx6 Wiring Harness #640119.

SKU:45-4003

Dimensions

Depth (in.) 4.29
Height (in.) 2.69
Length (in.) 50
Weight (lbs.) 18.65

Specifications

Amperage Rating (A) 28.2 (High)
Average Rated Life (hr.) 49,930
Beam Pattern Driving/Combo
Bezel Material Billet Machined Aluminum
Brightness (Lumens) 39,430 (High)
Description Straight; Driving/Combo; Clear
Housing Color Black
Housing Material Aircraft Grade Aluminum with Mil-Spec Hard Anodize
Lens Color Clear
Lighting Modes Hardcoated Polycarbonate
Light Quantity 1
Lens Material High Beam/Low Beam
Lighting Quantity 30
Lighting Type LED
Lighting Technology Forward Projecting
Mounting Hardware Description Mounting Brackets
Mounting Hardware Included Yes
Mounting Hardware Material Stainless Steel
Overvoltage Protection Built-In
Product Type OnX6+ 50 Inch LED Light Bar
Universal or Specific Universal
Wattage (W) 355 (High)
Wiring Harness Included No

Standards & Compliance

Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing)
Standards/Compliance (Water Resistance) IK10 Compliant (Mechanical Impact Testing)
Standards/Compliance (Impact Resistance) IP69K (Waterproof up to 9ft & Pressure Washable)

WARNING: This product can expose you to chemicals including lead and lead compounds, DEHP and bisphenol A (BPA) which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
